    <p>
      <img src="http://jashkenas.s3.amazonaws.com/images/jammit/jammit.png" alt="Jammit" />
    </p>

    <p>

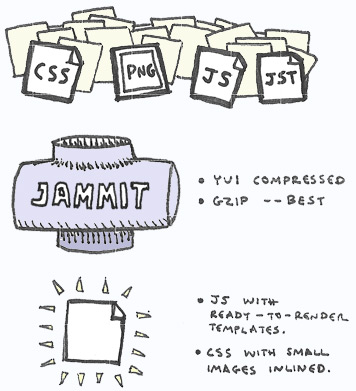

      <a href="http://github.com/documentcloud/jammit/">Jammit</a> is an
      industrial-strength asset packaging library for <b>Rails</b>, providing
      both the CSS and JavaScript concatenation and compression
      that you'd expect, as well as ahead-of-time gzipping, built-in JavaScript template
      support, and optional <b>Data-URI / MHTML image embedding</b>.
      All packaged assets are passed through the
      <a href="http://developer.yahoo.com/yui/compressor/">YUI Compressor</a>
      for safe, best-in-class compression.
    </p>

    <h2>Table of Contents</h2>

    <p style="line-height: 30px;">
      <a href="#installation">Installation</a>    |
      <a href="#configuration">Configuration</a>  |
      <a href="#usage">Usage</a>                  |
      <a href="#precaching">Precaching Assets</a> <br />
      <a href="#embedding">Embedding Images</a> |
      <a href="#jst">JavaScript Templates</a> |
      <a href="#changes">Change Log</a>
    </p>

    <p>
      <img id="diagram" src="http://jashkenas.s3.amazonaws.com/images/jammit/jammit_diagram.jpg" alt="Jammit Diagram" />
    </p>

    <h2 id="installation">Installation</h2>

    <ol>
      <li>
        Grab the gem:<br />
        <tt>gem install jammit</tt>
      </li>
      <li>
        Add the gem to your Rails environment inside of your initializer:<br />
        <tt>config.gem "jammit"</tt>
      </li>
      <li>
        Edit <b>config/routes.rb</b> to give Jammit a route
        ( <b>/assets</b> by default) for dynamic asset packaging and caching:
        <br /><br />

<pre> ActionController::Routing::Routes.draw do |map|

  ...
  Jammit::Routes.draw(map)
  ...

end</pre>

      </li>
    </ol>

    <h2 id="configuration">Configuration</h2>

    <p>
      Jammit uses the <b>config/assets.yml</b> YAML configuration file to define
      packages and to set extra options. A package is an ordered set of directory glob
      rules that will be expanded into a unique list of files. An example of
      a complete <b>assets.yml</b> follows:
    </p>

<pre> embed_images: on

javascripts:

  workspace:
    - public/javascripts/vendor/jquery.js
    - public/javascripts/lib/*.js
    - public/javascripts/views/**/*.js

stylesheets:

  common:
    - public/stylesheets/reset.css
    - public/stylesheets/widgets/*.css
  workspace:
    - public/stylesheets/pages/workspace.css
  empty:
    - public/stylesheets/pages/empty.css

templates:

  everything:
    - app/views/jst/**/*.jst</pre>

    <p>
      There are a number of extra configuration options that you may add to the
      <b>assets.yml</b> configuration file to customize the way Jammit behaves:
    </p>

    <table>
      <tr>
        <td><b>package_assets</b></td>
        <td><tt>on&nbsp;|&nbsp;off&nbsp;|&nbsp;always</tt></td>
        <td class="definition">
          Defaults to <b>on</b>, packaging and caching assets in every environment but development.
          Never packages when <b>off</b>, always packages when <b>always</b>.
        </td>
      </tr>
      <tr>
        <td><b>embed_images</b></td>
        <td><tt>on&nbsp;|&nbsp;off&nbsp;|&nbsp;datauri</tt></td>
        <td class="definition">
          Defaults to <b>off</b>. When <b>on</b>, packages and caches Data-URI
          and MTHML variants of your stylesheets, with whitelisted images
          embedded inline. Using <b>datauri</b> serves embedded images only
          to browsers that support Data-URIs, and serves unmodified stylesheets
          to Internet Explorer.
        </td>
      </tr>
      <tr>
        <td><b>template_function</b></td>
        <td><tt>on&nbsp;|&nbsp;off&nbsp;|&nbsp;...</tt></td>
        <td class="definition">
          The JavaScript function that compiles your JavaScript templates (<b>JST</b>).
          Defaults to <b>on</b>, which uses a bundled variant of
          <a href="http://ejohn.org/blog/javascript-micro-templating/">Micro-Templating</a>.
          Set it to <b>_.template</b> if you use
          <a href="http://documentcloud.github.com/underscore/">Underscore.js</a>,
          or <b>new&nbsp;Template</b> for
          <a href="http://www.prototypejs.org/">Prototype</a>. Turn it <b>off</b>
          to pass through the template strings unaltered.
        </td>
      </tr>
      <tr>
        <td><b>package_path</b></td>
        <td></td>
        <td class="definition">
          The URL at which packaged assets are cached and made available.
          Defaults to <b>assets</b>, but if you already have an existing
          AssetsController with a different purpose, you could change it to, say,
          <b>packages</b>.
        </td>
      </tr>
    </table>

    <h2 id="usage">Usage</h2>

    <p>
      To access your packages in views, use the corresponding helper. The
      helper methods can include multiple packages at once:
    </p>

    <pre>

&lt;%= include_stylesheets :common, :workspace %&gt; &lt;%= include_javascripts :workspace %&gt; &lt;%= include_templates :everything %&gt;</pre>

    <p>
      In development, no packaging is performed, so you'll see a list of individual
      references to all of the JavaScript and CSS files. The <b>assets.yml</b>
      configuration file is reloaded on every development request, so you can
      change the contents of your packages without needing to restart Rails.
    </p>

    <h2 id="precaching">Precaching Assets</h2>

    <p>
      Installing the Jammit gem provides the optional but handy <tt>jammit</tt> command-line utility,
      which can be hooked into your deployment process. The <tt>jammit</tt>
      command reads in your configuration file, generates all of the defined
      packages, and gzips them at the highest compression setting. In order to
      serve these static gzipped versions, configure your <b>Nginx</b>
      <a href="http://wiki.nginx.org/NginxHttpGzipStaticModule">http_gzip_static_module</a>,
      or your <b>Apache</b>
      <a href="http://httpd.apache.org/docs/2.0/content-negotiation.html">Content Negotiation MultiViews</a>.
      It's also a good idea to have gzip compression turned on for the remainder
      of your static assets, including any asset packages that aren't gzipped-in-advance.
      Adding <b>Nginx</b>'s
      <a href="http://wiki.nginx.org/NginxHttpGzipModule">http_gzip_module</a>
      or <b>Apache</b>'s
      <a href="http://httpd.apache.org/docs/2.0/mod/mod_deflate.html">mod_deflate</a>
      will do the trick.
    </p>

    <p>
      The <tt>jammit</tt> command can be passed options to configure the
      path to <b>assets.yml</b>, and the output directory in which all packages
      are compiled. Run <tt>jammit --help</tt> to see all of the options.
    </p>

    <h2 id="embedding">Embedding Images</h2>

    <p>
      After you've finished concatenating and compressing your JavaScript and
      CSS files into streamlined downloads, the slowest part of your page load
      is probably the images. It's common to use image sprites to avoid the
      avalanche of HTTP requests that are needed to load a bunch of small images.
      Unfortunately, image sprites can be complicated to position (especially
      with horizontal and vertical tiling), and a real pain to create and
      maintain. With a little elbow grease from Jammit, your spriting woes can be a
      thing of the past.
    </p>

    <p>
      With <b>embed_images</b> turned on, Jammit will inline image files directly
      into your compiled CSS, using
      <a href="http://en.wikipedia.org/wiki/Data_URI_scheme">Data-URIs</a> in
      supported browsers, and
      <a href="http://en.wikipedia.org/wiki/Mhtml">MHTML</a> in Internet Explorer.
      Instead of ten CSS files referencing 30 images, you can have a single,
      packaged, minified, gzipped CSS file, with the images coming in all at
      once instead of piecemeal, making just a single HTTP request.
    </p>

    <p>
      Embedded images can be a little tricky, which is why you need to opt-in
      to use them. After enabling <b>embed_images</b> in the configuration file,
      you'll need to whitelist the images that you'd like to make embeddable.
      When processing CSS, Jammit will only embed images that have
      <b>.../embed/...</b> somewhere in their path &mdash; the other images will be
      left untouched. It's not recommended to embed all of your site's images, just
      the ones that conform to the following three rules:
    </p>

    <ol>
      <li>
        <b>Images that are small.</b> Large images will simply delay the rendering
        of your CSS. Less than 32K is a decent guideline.
      </li>
      <li>
        <b>Images that are immediately visible.</b> It's better to leave the
        images that are  at page load time to download in the background.
      </li>
      <li>
        <b>Images that are referenced by a single CSS rule.</b> Referencing the
        same embedded image in multiple rules will cause that image's contents to be
        embedded more than once, defeating the purpose. Replace the duplicated
        rules with an image-specific HTML class, and you're good to go.
      </li>
    </ol>

    <p>
      A final <b>cautionary note</b>. Internet Explorer's implementation of MHTML
      requires the use of absolute paths in image references. This means that
      the timestamp that Rails appends to the stylesheet URL (to allow
      far-future expires headers) needs to also be in the contents of the
      stylesheet. If a process on your webserver changes the modification time
      of the cached MHTML stylesheet, it will break the image references. To fix
      it, use the <tt>jammit</tt> command (with <tt>--base-url</tt>) to rebuild your assets, or simply delete
      the cached file, and let Jammit automatically rebuild the file on the next
      request.
    </p>

    <h2 id="jst">JavaScript Templates</h2>

    <p>
      If you're using enough JavaScript to want it compressed and concatenated,
      you're probably using it to generate at least a little of your
      HTML. Traditionally, this has been accomplished by joining together strings
      and inserting them into the DOM. A far more agreeable way to generate HTML
      on the client is to use JavaScript templates (<b>JST</b>). Think Rails
      views and ERB, but with interpolated JavaScript instead.
    </p>

    <p>
      Jammit helps you keep your JavaScript views organized alongside your Rails
      views, bundling them together into packages, and providing them as functions
      for your client-side code to evaluate. By default, Jammit uses a variant of
      <a href="http://ejohn.org/blog/javascript-micro-templating/">John Resig's Micro Templating</a>
      to compile the templates, but you can use a JavaScript templating function
      of your choosing by specifying a <b>template_function</b> in <b>assets.yml</b>.
      Jammit will run all of your JST through the template function, and assign
      it by filename to a top-level <b>JST</b> object. For example, the following
      template, <b>app/views/jst/license.jst</b>:
    </p>

<pre> &lt;div class="drivers-license"&gt;

  &lt;h2&gt;Name: &lt;%= name %&gt;&lt;/h2&gt;
  &lt;em&gt;Hometown: &lt;%= birthplace %&gt;&lt;/em&gt;
  &lt;div class="biography"&gt;
    &lt;%= bio %&gt;
  &lt;/div&gt;

&lt;/div&gt;</pre>

    <p>
      Including the asset package makes this template available to your
      JavaScript as the <b>JST.license</b> function.
    </p>

<pre> JST.license({name : "Moe", birthplace : "Brooklyn", bio : "Moe was always…"}); </pre>

    <p>
      To use <a href="http://documentcloud.github.com/underscore/">Underscore.js</a>
      templates, set <b>template_function</b> to "<b>_.template</b>".<br />
      To use <a href="http://www.prototypejs.org/">Prototype</a> templates, set
      it to "<b>new Template</b>".<br />To use
      <a href="http://github.com/janl/mustache.js">Mustache.js</a> templates,
      you'll need
      <a href="http://gist.github.com/234982">a little extra setup</a>.
    </p>

    <h2 id="changes">Change Log</h2>

    <p>
      <b class="header">0.1.0</b><br />
      Initial Jammit release.
    </p>

    <p>
      <br />
      <a href="http://documentcloud.org/" title="A DocumentCloud Project" style="background:none;">
        <img src="http://jashkenas.s3.amazonaws.com/images/a_documentcloud_project.png" alt="A DocumentCloud Project" style="position:relative;left:-10px;" />
      </a>
    </p>

    </div>

  </div>

</body> </html>
